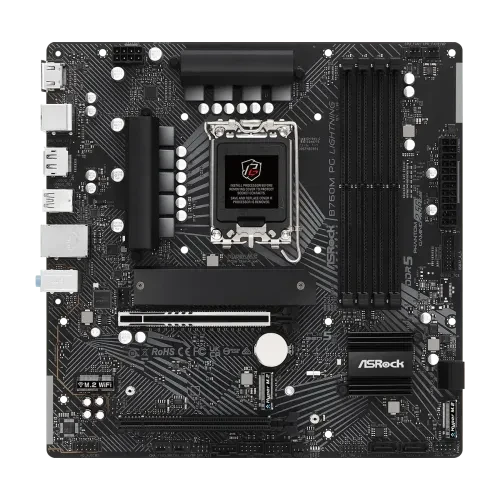

ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 167097

Key Features

Model: B760M PG Lightning
Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5 Gigabit LAN, 7.1 CH HD Audio

SAR16,600.00 ~~SAR18,000.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Basic Information
Supported CPU	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT)
Chipset	Intel B760
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Expansion Slots
PCI	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire
M.2 Socket	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Memory
Type	DDR5
Slots	4 x DDR5 DIMM Slots
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Supports Intel® Extreme Memory Profile (XMP) 3.0
Maximum Memory	256GB
Graphics
Graphics	Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1 x DisplayPort 1.4
USB (s)	1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)
LAN Port (s)	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Supported Storage	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

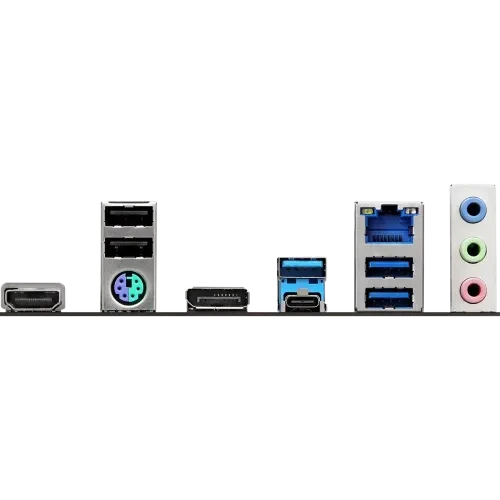

Internal I/O Ports	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
TPM (Trusted Platform Module )	- 1 x SPI TPM Header
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer
Bundled Software	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty	3 years

Description

ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard

The ASRock B760M PG Lightning DDR5 Micro ATX Motherboard is a powerhouse of performance and versatility, designed for 14th, 13th, and 12th Gen Intel Core processors (LGA1700). Featuring a robust 7+1+1 power phase design with Dr.MOS technology for efficient power delivery, it supports cutting-edge DDR5 memory up to 7200+ MHz (OC), accommodating up to 256GB across four DIMM slots with XMP 3.0 compatibility. The motherboard includes advanced PCIe 5.0 x16 for high-performance GPUs, PCIe 3.0 x16 for additional expansion, and three Hyper M.2 slots offering PCIe Gen4x4 speeds for ultra-fast storage solutions. Graphics outputs include HDMI 2.1 and DisplayPort 1.4, supporting up to 8K resolution for a premium visual experience. Onboard connectivity is state-of-the-art with Dragon 2.5G LAN, USB 3.2 Gen1 Type-C, multiple USB 3.2 Gen1 Type-A and USB 2.0 ports, and an M.2 Key E slot for WiFi upgrades. Audio performance is equally impressive, thanks to Realtek ALC897 codec and Nahimic Audio, delivering 7.1-channel HD sound. The ASRock B760M PG Lightning DDR5 Micro ATX Motherboard's durability is enhanced with Hi-Density power connectors and smart fan speed control across multiple fan and water pump connectors. For gamers and content creators, it supports AMD CrossFire™ for multi-GPU setups and offers Phantom Gaming Tuning software for system optimization. Storage flexibility is ensured with four SATA3 connectors and RAID support (0, 1, 5, 10) for both SATA and NVMe SSDs. The UEFI BIOS features EZ Mode, Full HD UEFI, and tools like Instant Flash and Easy RAID Installer. Compact and feature-rich, this ASRock B760M PG Lightning DDR5 Micro ATX Motherboard integrates seamlessly with Windows 10 and 11, offering rock-solid performance and ultrafast connectivity for modern computing needs.

Buy ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard From Fast Deals

In Bangladesh, you can get the original ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard From Fast Deals. We have a large collection of the latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Fast Deals Shop to get yours at the lowest price. The ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard comes with 3 years warranty.
